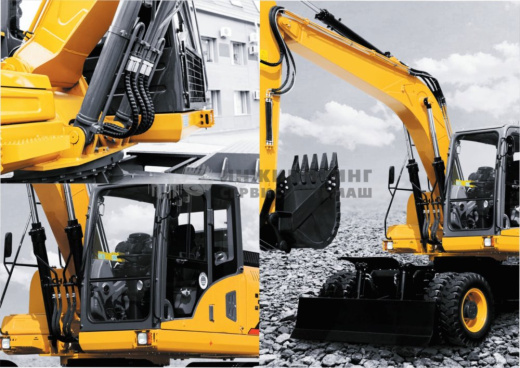

Hybrid road-rail excavator

A hybrid road-rail excavator is an integral part of track crew working process. Such an excavator automatizes a significant part of manual operations and eliminates a necessity to use multipurpose repair trains during track maintenance, overhaul and snow removing.

The following works can be performed with the help of a hybrid road-rail excavator:

• cutting out pumpings on track;
• replacing sleepers and crossbars, both wooden and reinforced concrete;
• tamping, straightening and surfacing the track;
• laying turnouts (part by part);
• replacing rails;
• dumping ballast, levelling ballast prism.

External dimensions

Length	7750 mm
Width	2550 mm
Height	3250 mm
Unladen weight	14 000 kg

Technical specifications

Model	160W
Rated volume of bucket	0.6 m3
Maximum digging depth	4865 mm
Maximum digging radius	8000 mm
Maximum digging height	8720 mm
Maximum dropping height	6220 mm
Digging force of bucket	85 kN
Digging power of arm	53 kN
Diesel engine	4BTAA3.9-C125/YCA4A125Z-T21
Rated power	92/93 kWt
