Dump car
Characteristics

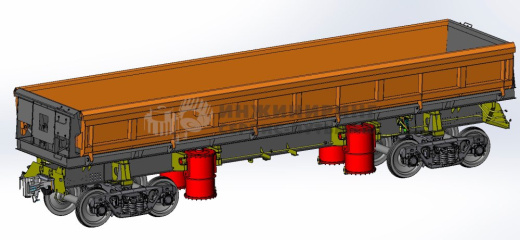

Dump car
#PROP_TITLE#
—
#PROP_VALUE#
(four-axle dump truck)
A dump car is a one-piece metal self-unloading freight car of welded construction. It consists of a lower frame, a tilting body, unloading devices, a running gear, auto-braking and coupling devices.
Dump car unloads cargo with the help of pneumatic cylinders (one on each side), which tilts a cargo body for 45°. The cylinders are actuated by compressed air supplied directly from a locomotive or a stationary compressor unit. When the cargo body is tilted, the sideboard reclines towards the direction of unloading and serves as the extension of floor surface.
The opening mechanism of sideboard is of lever type. After unloading, the cargo body is set back to service position by gravity
The dump car is equipped with a pneumatic automatic brake and a manual parking brake.
A dump car is a one-piece metal self-unloading freight car of welded construction. It consists of a lower frame, a tilting body, unloading devices, a running gear, auto-braking and coupling devices.
Dump car unloads cargo with the help of pneumatic cylinders (one on each side), which tilts a cargo body for 45°. The cylinders are actuated by compressed air supplied directly from a locomotive or a stationary compressor unit. When the cargo body is tilted, the sideboard reclines towards the direction of unloading and serves as the extension of floor surface.
The opening mechanism of sideboard is of lever type. After unloading, the cargo body is set back to service position by gravity
The dump car is equipped with a pneumatic automatic brake and a manual parking brake.
Technical specifications
| Volume of cargo body | 38 m3 |
| Payload capacity | 1.9 t |
| Length over pulling faces of couplers | min 11 800 mm |
| Base | min 7 500 mm |
| Number of axes | 4 pcs |
| Track width | 1520 mm |
| External dimensions according to GOST | 1 - Т |
| GLONASS, GPS trackers are available | + |
| Service life | min 22 years |
