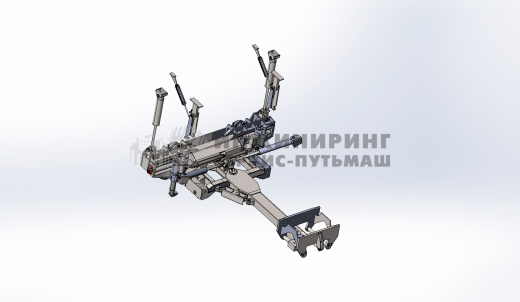

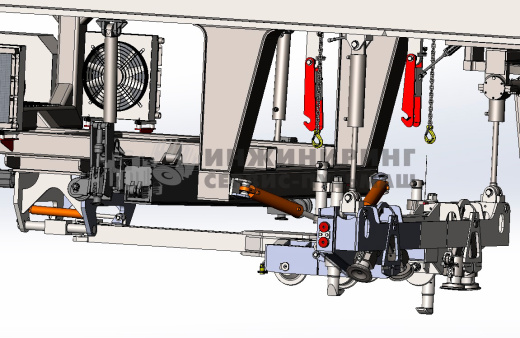

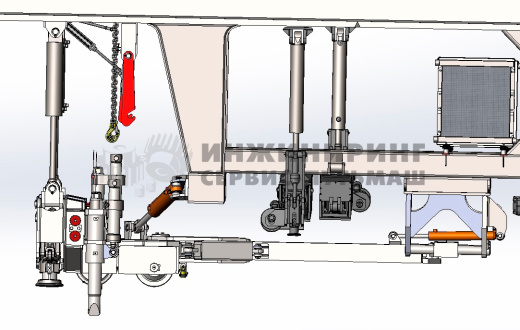

LIFTING AND STRAIGHTENING DEVICE FOR PM U1-16 TRACK MACHINE
IS-A 99804
is used to straighten track in the longitudinal section, in plan view and level-wise.. The straightening unit is controlled by the control and measuring system in automatic mode. At the same time, an operator is able to adjust its operation in manual mode with the help of control units.
PM U1-16 track machine is equipped with telescopic beams for hoisting the third trackway during raising and adjusting a turnout.

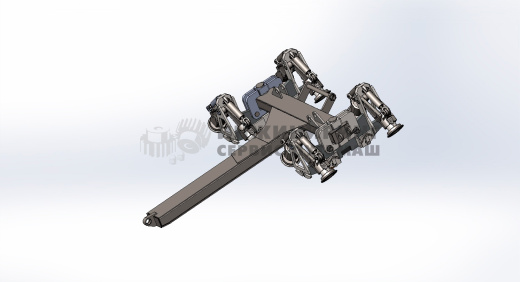

HOISTING AND STRAIGHTENING DEVICE FOR PM-03-48 TRACK MACHINE
IS-A 99870
is designed for hoisting and straightening a rail-sleeper grid during track repairing.
EXTERNAL DIMENSIONS:
Length 3037 mm
Width 2188 mm
Weight 1526 kg
Height 727 mm
Track raising force - min 250 (25.48) kN (tc)
Shear force - min 170 (17.33) kN (TC)
IS-A 99804
is used to straighten track in the longitudinal section, in plan view and level-wise.. The straightening unit is controlled by the control and measuring system in automatic mode. At the same time, an operator is able to adjust its operation in manual mode with the help of control units.
PM U1-16 track machine is equipped with telescopic beams for hoisting the third trackway during raising and adjusting a turnout.
HOISTING AND STRAIGHTENING DEVICE FOR PM-03-48 TRACK MACHINE
IS-A 99870
is designed for hoisting and straightening a rail-sleeper grid during track repairing.
EXTERNAL DIMENSIONS:
Length 3037 mm
Width 2188 mm
Weight 1526 kg
Height 727 mm
Track raising force - min 250 (25.48) kN (tc)
Shear force - min 170 (17.33) kN (TC)
Technical specifications
| Lifting and straightening device | Movable cross beam equipped with support and clasping devices |
| Track raising force | min 420 kN |
| Lifting force 3 points | min 76 kN |
| Sliding force | min 280 kN |
