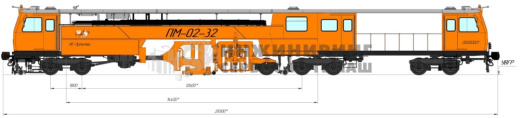

PM-02-32 track machine
Characteristics
PM-02-32 track machine
#PROP_TITLE#
—
#PROP_VALUE#
STRAIGHTENING-TAMPING-SURFACING TRACK MACHINE PM-02-32
The machine is designed for straightening and tamping the railway track with R50, R65, R75 rails and the fastening elements of any kind in the longitudinal, cross section and in plan view. PM-02-32 machine can be used when constructing, repairing and servicing the railway track.
.
The machine is designed for straightening and tamping the railway track with R50, R65, R75 rails and the fastening elements of any kind in the longitudinal, cross section and in plan view. PM-02-32 machine can be used when constructing, repairing and servicing the railway track.
.
Technical specifications
| Maximum performance | 2500 sleepers/hour |
| Design travelling speed in travelling mode | up to 90 km/h |
| Travelling speed in measuring mode | up to 15 km/h |
| Power plant output | min 350 kW |
| Radius of passable curved track in operating mode | min 180 m |
| Number of tamping units | 2 pcs |
| Number of packers per unit (track machine) | 16 (32) pieces |
| Maximum value of track raising | 150 mm |
| Maximum shear value | 150 mm |
| Number of axes | 7 pcs |
| Number of driving axle in travelling mode | 2 pcs |
| Number of driving axles in operating mode | 4 pcs |
| Continuous work time of machine | min 8 hours |
| Time to turn machine from travelling to operating position and vice versa | no more than 8 minutes |
