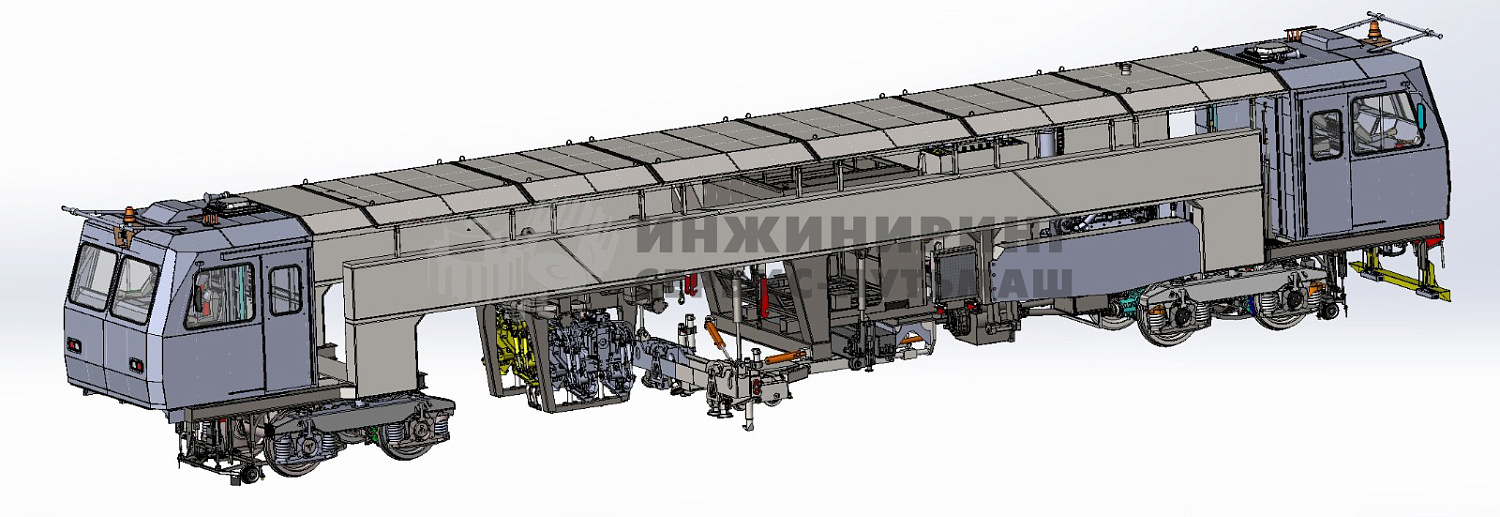

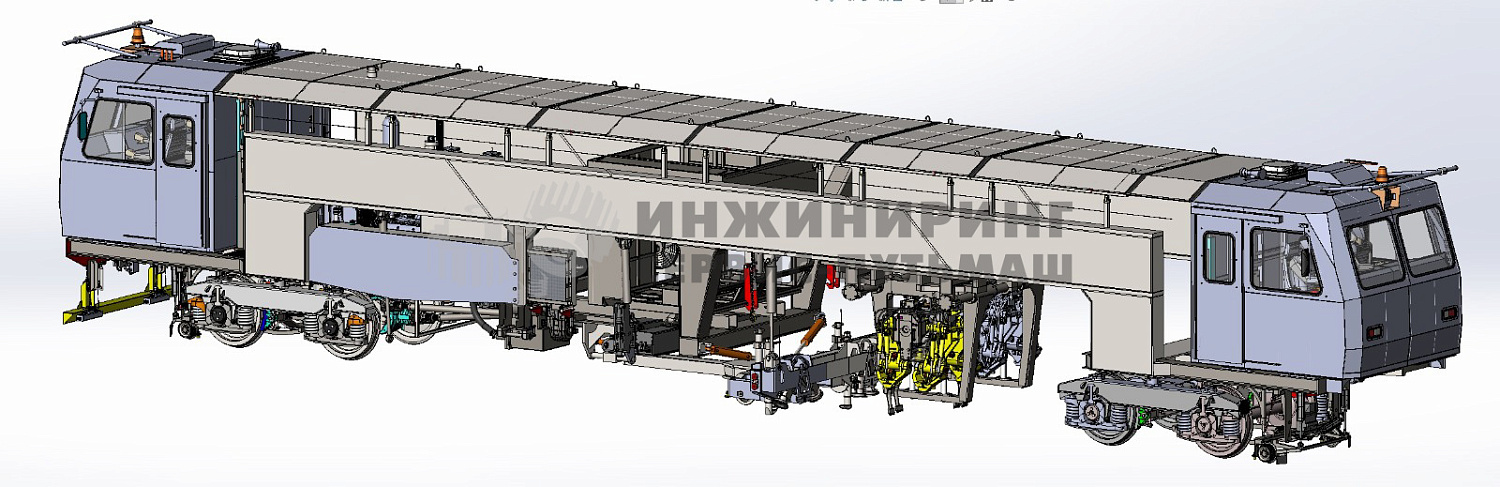

PM-U1-16 track machine
Characteristics
PM-U1-16 track machine
#PROP_TITLE#
—
#PROP_VALUE#
STRAIGHTENING-TAMPING-SURFACING MACHINE PM-U1-16
The machine of cyclic-type action is designed for comprehensive straightening a railway track with R50, R65, R75 rails and fastening elements of any kind in the longitudinal section and in plan view. It is also used for compacting ballast under sleepers and at their butt-ends, when repairing, servicing the railway track, constructing new railway track or reconstructing the old ones.
The machine of cyclic-type action is designed for comprehensive straightening a railway track with R50, R65, R75 rails and fastening elements of any kind in the longitudinal section and in plan view. It is also used for compacting ballast under sleepers and at their butt-ends, when repairing, servicing the railway track, constructing new railway track or reconstructing the old ones.
Technical specifications
| Maximum performance on straight sections in semi-automatic straightening mode | min 700 sleepers/ hour |
| Performance of 1/11 type turnouts | min 1 turnout/hour |
| Travelling speed |
|
| in travelling mode when self-propelled | min 90 km/h |
| in travelling mode driven by a separate locomotive | min 90 km/h |
| in measuring mode | min 10 km/h |
| External dimensions of guiding in curves according to GOST 9238 | 1-Т |
| Radius of passable curved track in travelling mode | min 120 m |
| Radius of passable curved track in operating mode | min 180 m |
