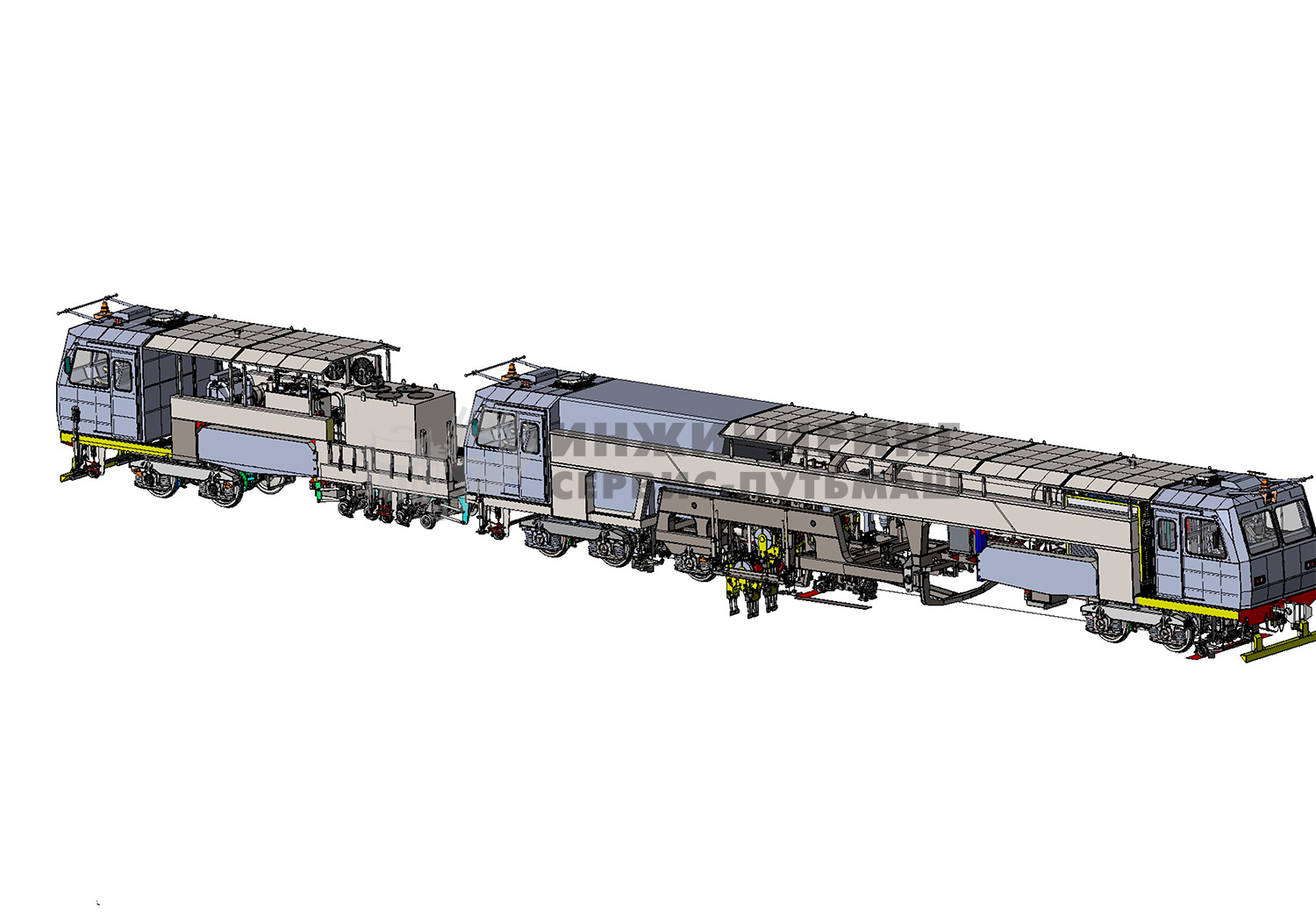

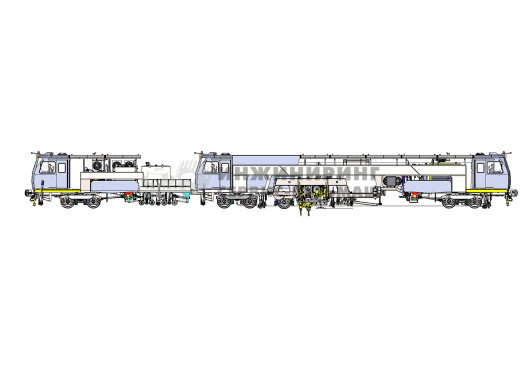

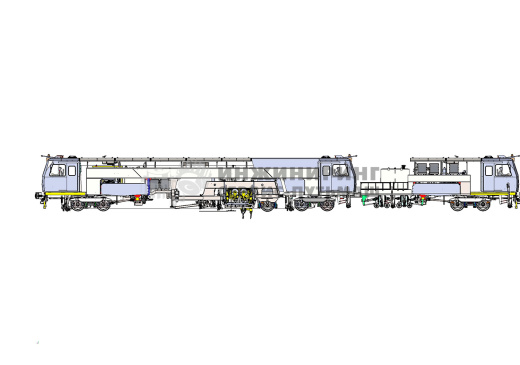

Straightening-tamping-surfacing machine PM-03-48
Characteristics
Straightening-tamping-surfacing machine PM-03-48
#PROP_TITLE#
—
#PROP_VALUE#
Designed for straightening and tamping 1520 mm gauge railway track with R50, R65, R75 rails in the longitudinal, crosssection and plan sections. The rails might have any type of fastenings. Is used during track repairing and current maintenance.
Technical specifications
| Maximal output, sleepers/hour | 3300 sleepers/h |
| Travelling speed when being self-transported | up to 90 km/h |
| Travelling speed in measuring mode | up to 15 km/h |
| Power plant output | not less 350 kW |
| Number of tamping units | 4 pcs |
| Number of packers at 1 unit (vehicle) | 24 (48) pcs |
| Maximal raising | 150 mm |
| Maximal track shifting | 50 mm |
Characteristics
